It is possible to align the Expiratory and Inspiratory loops to TLC or to RV, so that the loop either starts at 0 and ends at the inspired value, or ends at the Expiratory plateau:
This is accessed at:

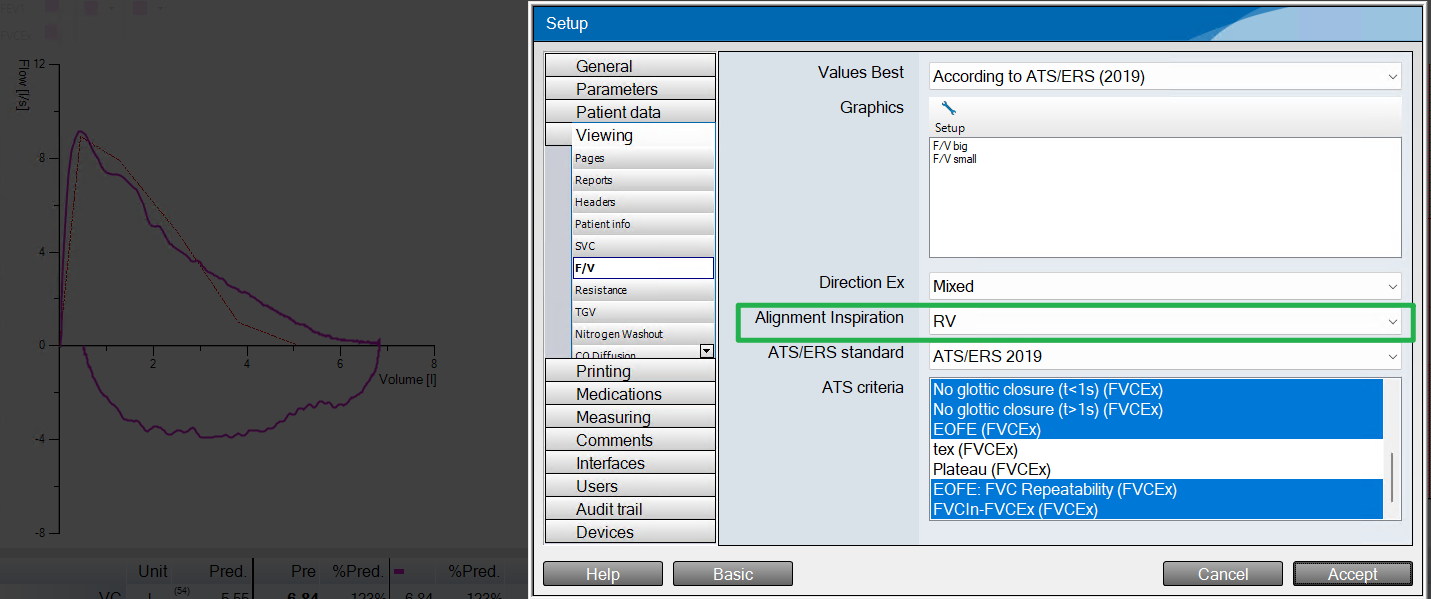

SETUP > Advanced > Viewing > F/V > Alignment Inspiration
Use TLC to start the inspired loop at 0
Use RV to start the inspired loop at the expiratory plateau point.
